Response time: Less than 10 seconds when scene changes
CO2
Range: 400 to 5000ppm (calibrated to 400 ppm outdoors)
Error %: +/- 5% of reading.
Response time : 2 minutes
Temperature
Range: 10 to 50 degrees C
Error %: 1%
Response time: 5-30 seconds depending on air flow
Humidity
Range : 0 to 90% RH
Error %: Max +/-3%
Response time: 5 seconds
Portable
Size : 11.6cm*11.6cm*6cm.
Power voltage : 5V. Can be charged via laptop/car usb.
Tested and calibrated against :
PM: Beta Attenuation Monitor (BAM)
CO2: Can be self calibrated to 400ppm outdoors by taking monitor outdoors and long pressing Setup button on monitor.
Temp & Humidity calibrated with a master tracealbe to NABL.
Wifi Connectivity:

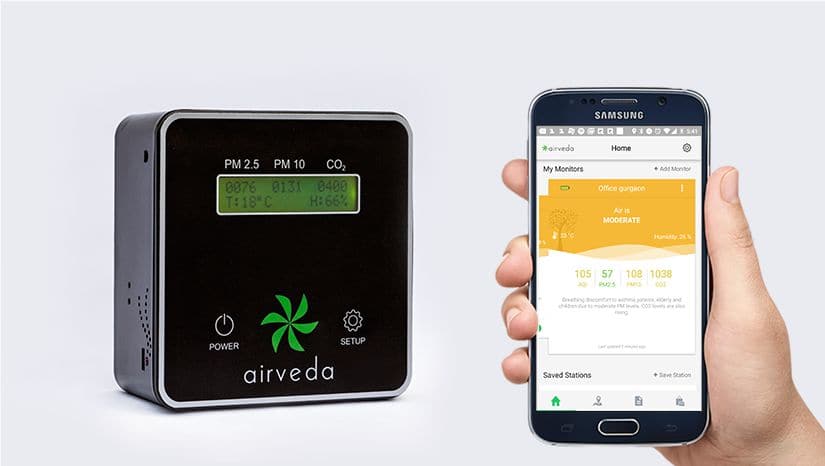

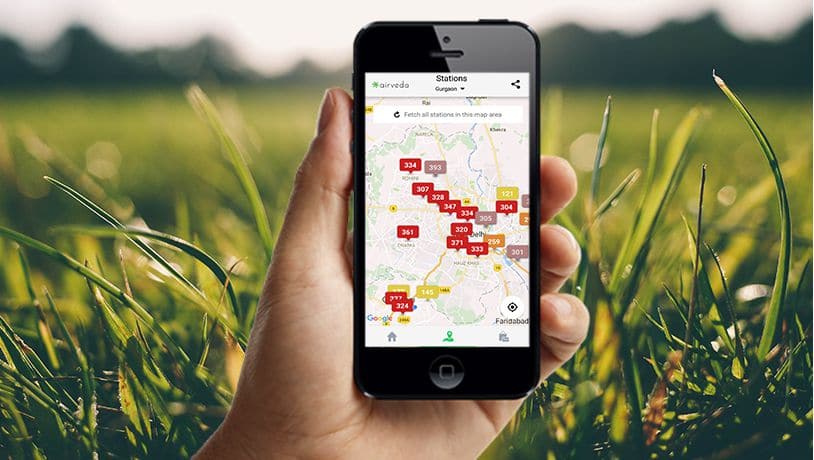

Connects to wifi. Data available in Android and iOS apps alongwith Indian AQI, day, week, month history as well as outdoor data in different parts of city.
Warranty & Support
1 Year warranty against any manufacturing defects.
Client responsible for getting device to our facilities for all servicing. Service time 1 week.
Warranty is void if device is opened, tampered with or electronics damaged due to mechanical shock.
Working Principle
PM sensor uses laser scattering principle: Light scattering can be induced when particles go through the detecting area. The scattered light is transformed into electrical signals and these signals will be amplified and processed. The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles diameter.
CO2 sensor is NDIR based (Nondispersive infrared sensor).
